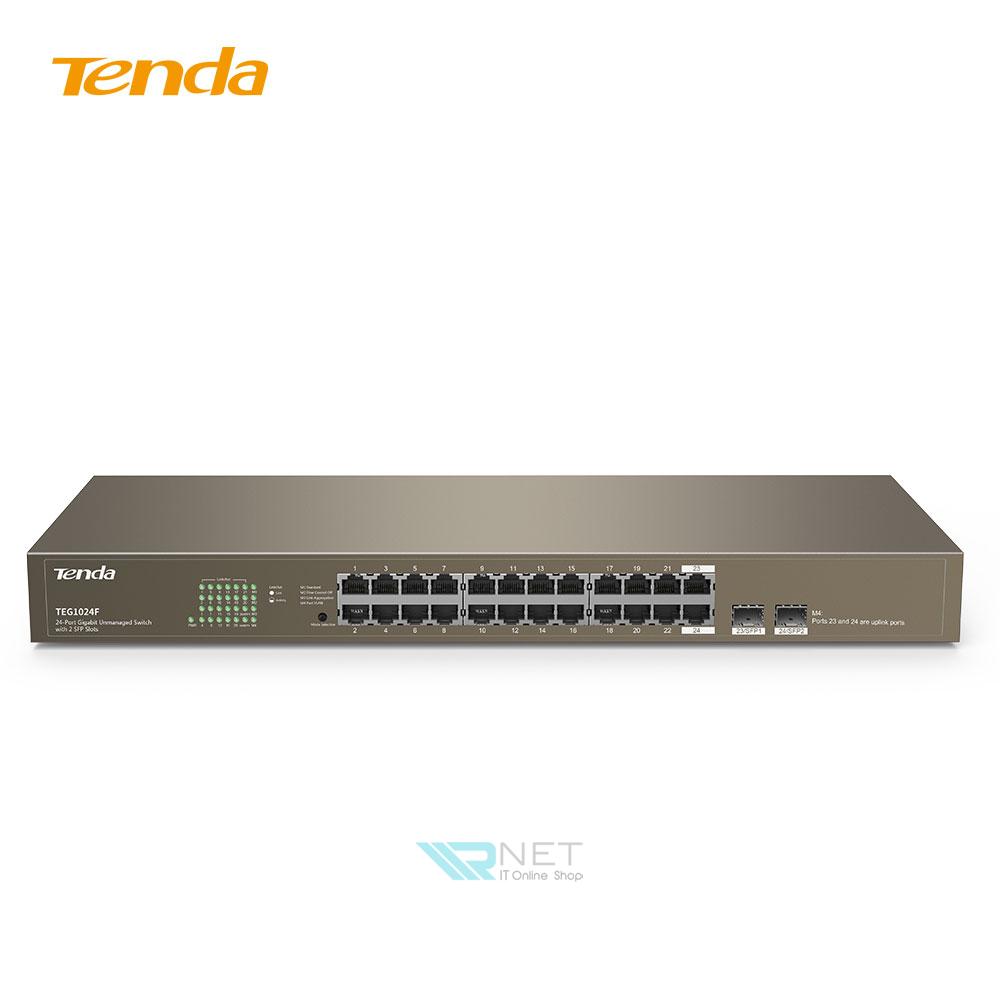

سوئیچ شبکه 24 پورت گیگابیت تندا مدل TEG1024F

توضیحات

Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
LED Indicator 1* Power,24* Link/Act,4*Mode
Interfaces 24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
2*1000 Base-X SFP ports (Combo)
Transmission media Recommended: CAT5/5e UTP or better
Dimensions 440.0mmx178.0mmx44.0mm
Material Metal
Level of protection Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode Store-and-forward
Switch capacity 48Gbps
Forwarding rate 35.60Mpps
Buffer 2Mb
MAC address table 8K
Power method Input: 100-240V AC 50/60Hz
Power consumption Max:<13W
Mounting Desktop mounting: support
Wall mounting: support
Rack mounting : support
Environment Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing
Certifications CE, FCC, RoHS
Funtions M1: Standard mode, the default mode of the switch. In that mode, all ports can communicate with each other.
M2: Port-based priority mode, ports 1 to 8 have higher priority than other ports, and all ports can co.0mmunicate with each other.
M3: Port-based VLAN mode, ports 1 to 24 can co.0mmunicate with uplink ports (ports 25 and 26) but cannot co.0mmunicate with each other.
Protocols CDMA/CD
MAC address learning Auto-Learning and Auto-Aging
